Products
Branded and non-branded industrial transmission products, retail or wholesale. Tap any product to request a quote.
Right Angle Gearbox

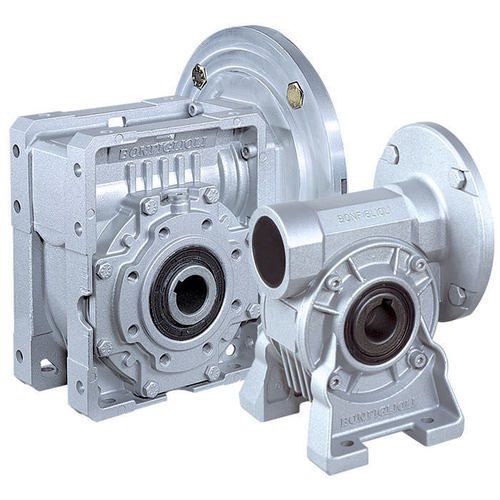

Worm Gearbox — VF-Series, W-Series
Bonfiglioli's W Series universal worm gearbox offers a transmissible mechanical power range from 0.04 kW to 75 kW and gear ratios from 7 to 100. • Torque Range: 13 Nm up to 7,100 Nm • Input Speed: Maximum 1,500 RPM recommended • Gearing Type: Right-angle worm gear arrangement • Output Configurations: Keyed hollow shaft, single or double-sided solid plug-in output shaft, and optional torque limiter
Heliworm Gearbox — VFR Series, WR Series
Combines a helical gear stage at the input with a worm gear stage at the output for exceptionally high reduction ratios, smooth operation and superior torque output in a compact unit. VFR uses the VF series worm foundation; WR uses the W series worm foundation. • Torque Range: up to 7,100 Nm • Transmissible Power: 0.04 kW to 75 kW • Gear Ratios: 21 up to 300+ • Maximum Input Speed: 1,500 RPM • Output Shaft Variants: Keyed hollow shaft, single or double solid plug-in shaft, or integrated torque limiter • Housing: Die-cast aluminium (smaller sizes) or rigid cast iron (larger frames)

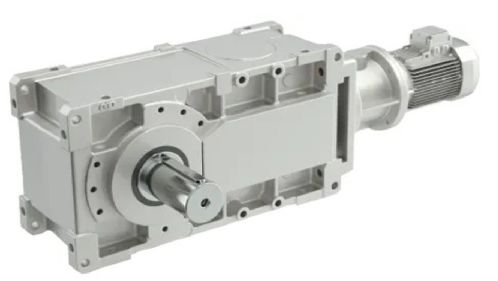

Bevel Helical Gearbox — A Series
A right-angle industrial gearbox designed for high dynamic performance and energy savings. • Torque Range: 100 to 14,000 Nm • Gear Ratios: 4.9 up to 1,715 • Transmissible Power: 0.22 to 150 kW • Mounting Options: Foot and shaft mount with two bore options per size • Output Configurations: Solid shaft, splined hollow shaft, hollow shaft with shrink discs
Inline Gearbox

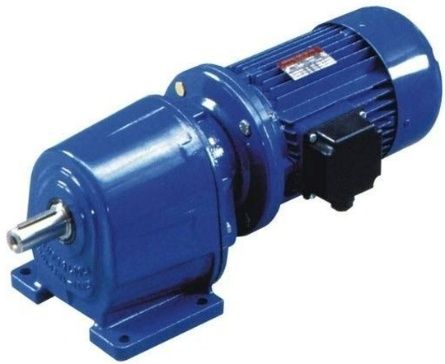

Inline Helical Gearbox — AS Series
Inline helical gearboxes offering a broad torque and power range for demanding industrial drive lines. • Torque Range: 50 Nm – 12,000 Nm • Transmissible Power: 0.09 kW – 222 kW • Gear Ratios: 2.6 up to 1,481 • Mounting Options: Foot, flange, or shaft mount • Input Configurations: IEC and NEMA motor adapters or solid input shafts • Output Shafts: Metric or inch series, solid, keyed, or hollow

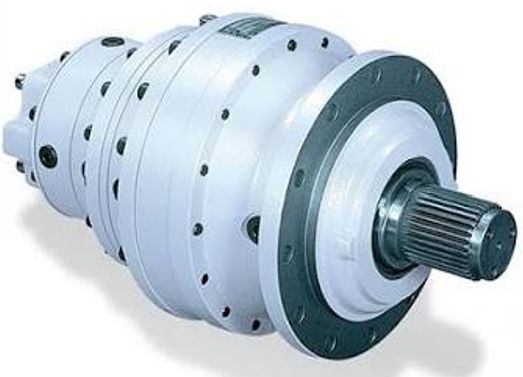

Planetary Gearbox — 300 Series
Heavy-duty planetary gearboxes built for high-torque, demanding applications. • Torque Range: 1,250 Nm up to 1,286,700 Nm • Gear Ratios: 3.4 to 2,916 • Transmissible Power: up to 1,050 kW • Brake Options: Negative multi-disk parking brake • Mounting & Output: Foot or flange mounted; solid keyed, splined, or hollow shaft
Parallel Gearbox

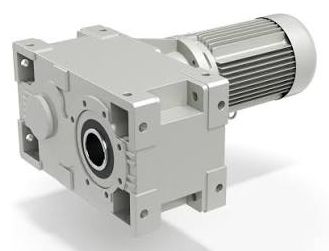

Parallel Helical Gearbox — F Series
Parallel helical gearmotors from the F-Series lineup, built for efficient straight-line power transmission. • Torque Range: 140 Nm to 14,000 Nm • Gear Ratios: 6.4 to 2,099 • Transmissible Power: 0.09 kW to 123 kW • Output Options: Keyed hollow shaft, keyless shrink disc fitting, optional plug-in solid output shaft • Mounting Flexibility: Foot, flange, or shaft mount with optional torque arm and anti-vibrating bushings
